Module

N-Type ABC Series – 54 Cells – Black

N-Type ABC Series – 72 Cells – Black

N-Type ABC Series – 54 Cells – White

N-Type ABC Series – 72 Cells – White
Cell

All Back Contact Cell

Bifacial Mono PERC Cell
Inverter

Residential Three-Phase String Inverter

C&I Three-Phase String Inverter
Storage

AIKO Residential ESS

AIKO C&I ESS
Mounting System

AIKO Pitched-Roof Mounting System
Bezel-less Front|A Result of Cutting-Edge Technology|Mass Production Ready|High Energy Yield
- Delivery Efficiency: 22.5% ~ 23.6%
- Lower power attenuation rate: ≤ 1% in the first year, ≤ 0.35% for each year after
- Warranty: 15-year product warranty, 30-year power warranty
- Lower Temperature Coefficiency:-0.29%/°C with high energy yield
- Lower BOS cost
- All-black Front with no bezel, high quality and stylish
Mono-glass AIKO-A-MAH54Mb
- 460Wdelivery power
- 23.6%delivery efficiency
- ≤ 1%first year degradation
- ≤ 0.35%annual degradation from 2-30 years

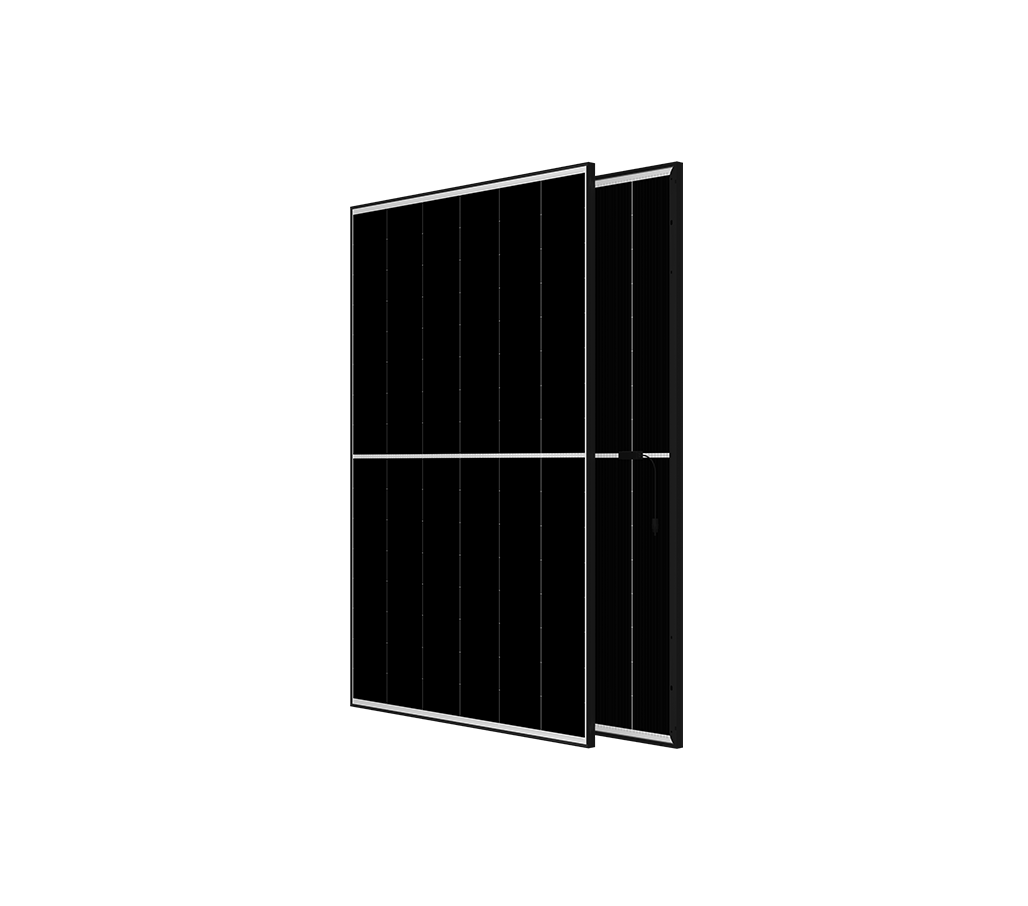

Dual-glass AIKO-A-MAH54Db
- 455Wdelivery power
- 23.3%delivery efficiency
- ≤ 1%first year degradation
- ≤ 0.35%annual degradation from 2-30 years
Bezel-less Front|A Result of Cutting-Edge Technology|Mass Production Ready|High Energy Yield
- Delivery Efficiency: 23.0% ~ 23.8%
- Lower power attenuation rate: ≤ 1% in the first year, ≤ 0.35% for each year after
- Warranty: 15-year product warranty, 30-year power warranty
- Lower Temperature Coefficiency:-0.29%/°C with high energy yield
- Lower BOS cost
- All-black Front with no bezel, high quality and stylish
Mono-glass AIKO-A-MAH72Mb
- 615Wdelivery power
- 23.8%delivery efficiency
- ≤ 1%first year degradation
- ≤ 0.35%annual degradation from 2-30 years
Bezel-less Front|A Result of Cutting-Edge Technology|Mass Production Ready|High Energy Yield
- Higher power output
- Delivery Efficiency: 23.6% ~ 23.8%
- Lower power attenuation rate: ≤ 1% in the first year, ≤ 0.35% for each year after
- Warranty: 15-year product warranty, 30-year power warranty
- Lower Temperature Coefficiency:-0.26%/°C with high energy yield
- Lower BOS cost
Mono-glass AIKO-A-MAH54Mw
- 465Wdelivery power
- 23.8%delivery efficiency
- ≤ 1%first year degradation
- ≤ 0.35%annual degradation from 2-30 years

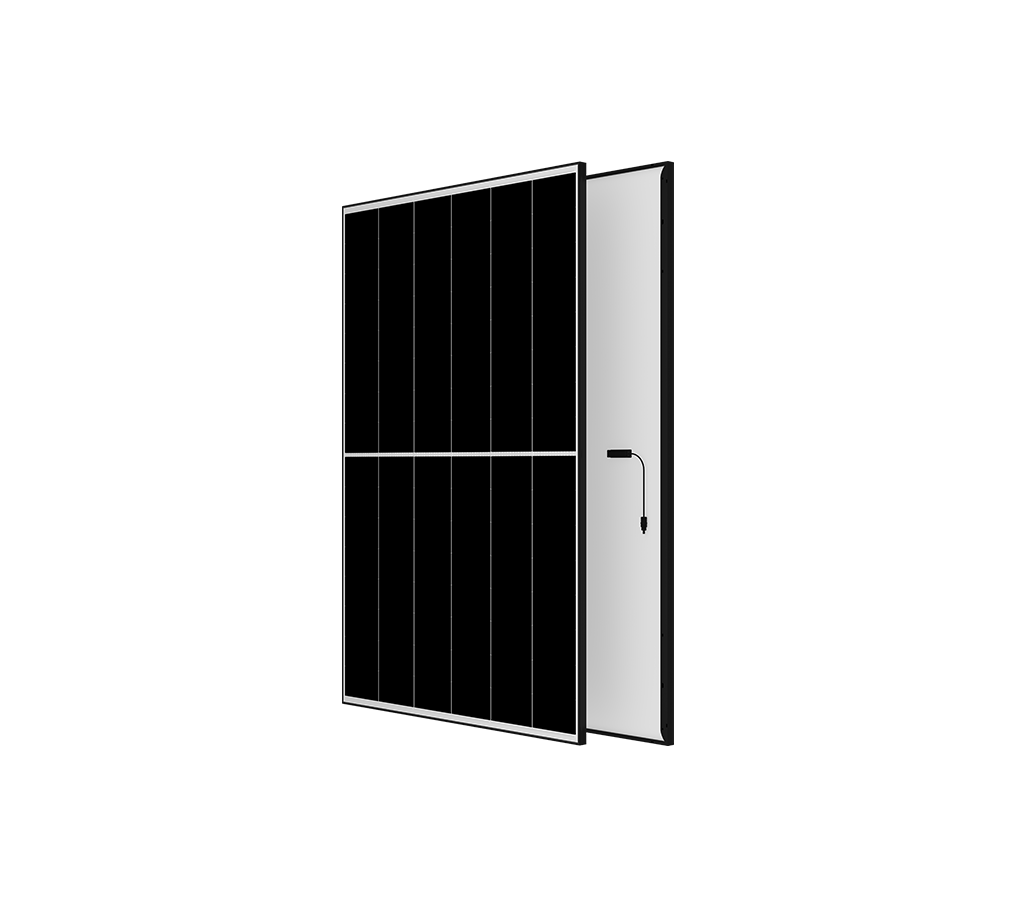

Dual-glass AIKO-A-MAH54Dw
- 460Wdelivery power
- 23.6%delivery efficiency
- ≤ 1%first year degradation
- ≤ 0.35%annual degradation from 2-30 years
Bezel-less Front|A Result of Cutting-Edge Technology|Mass Production Ready|High Energy Yield
- Higher power output
- Delivery Efficiency: 23.8% ~ 24.0%
- Lower power attenuation rate: ≤ 1% in the first year, ≤ 0.35% for each year after
- Warranty: 15-year product warranty, 30-year power warranty
- Lower Temperature Coefficiency:-0.29%/°C with high energy yield
- Lower BOS cost
Mono-glass AIKO-A-MAH72Mw
- 620Wdelivery power
- 24.0%delivery efficiency
- ≤ 1%first year degradation
- ≤ 0.35%annual degradation from 2-30 years
Dual-glass AIKO-A-MAH72Dw
- 615Wdelivery power
- 23.8%delivery efficiency
- ≤ 1%first year degradation
- ≤ 0.35%annual degradation from 2-30 years
Dual-glass AIKO-A-MAH72Dw G
- 625Wdelivery power
- 23.7%delivery efficiency
- ≤ 1%first year degradation
- ≤ 0.35%annual degradation from 2-30 years
Aesthetics|High efficiency|High reliability|High power output per watt
Features
- Full area illuminated
- All c-Si atoms electricity-producible technology
- All back electrode technology
- All back passivating contact technology
- Totally Ag-free metallization technology
- Whole Life-cycle hot-spot risk control and Power generation guarantee technology
Description
Tackling N-type technical barriers, fully independent propertyrights
Relying on the first star product developed by Lianchuang Center, AIKO self-developed core equipment and mass production process, which has completely independent intellectual property rights.
Silver-free metallization historic technological breakthrough
ABC silver-free technology guarantees power generation, while it can greatly reduce the problem of broken grid of crystalline silicon cells, it can also avoid affecting the life of components due to the life of silver wires.
Revolutionary N-type full back contact battery product
There is no metal grid on the front, 100% sunlight is received, and it has excellent light decay resistance performance and mechanical load performance; Low temperature coefficient, higher temperature resistance, high efficiency and high appearance.
New intelligent manufacturing factory in Zhuhai
In Q4 of 2022, 6.5GW will be put into operation in AIKO Zhuhai Base, the Zhuhai base covers an area of about 1,100 mu, with a designed production capacity of 26GW. In Q3 of 2023, 10GW of ABC cell and module production capacity will be formed.
Broad prospects for technological development
In the future, ABC can be combined with perovskite, copper indium gallium selenide, cadmium Telluride, thin-film solar cells and other technologies superimposed.
High efficiency|High reliability|High power yield|“Bifacial, metrology, and classification” technology
Size
- 182mm×182mm(diameter 247±0.5mm)
- 210mm×210mm(diameter 295±0.25mm)
- Thickness:160±20μm
Features
182mm 10BB Bifacial Mono PERC Cell
- Front Side (−): Silicon oxide + blue silicon nitride compound anti-reflection coating (PID Free) ; The front side is a half-cut design; The busbar head is a large double fork, and the pads of the busbar are intermittently stepped. The size of the head pad is 1.2 ± 0.15mm * 1.3± 0.15mm, and the middle pad of the busbar size is 0.8±0.15mm*1 ± 0.15mm.
- Back Side (+): Passivated layer (AlOx and SiNx) and Rear Contact (Al); the rear electrode is composed of 10 roots rear compound busbar and 160 roots rear Al fingers. The composite busbar is locally narrowed, and the width is 1.5 ± 0.3mm and 1.0 ± 0.3mm, respectively. 8 sections 1.45±0.3 mm silver anode, no laser pattern under the rear electrode. Silver electrode has round head, and silver electrode is 1.5±0.6mm hollow at both ends.
210mm 12BB Bifacial Mono PERC Cell
- Front(-):Silicon dioxide + blue nitride composite anti-reflection film (PID free);Three-Segment design,12 roots bus bar and 120-180 roots fingers;The bus bar width is 0.06±0.02mm with three-Segment design, and the bus bar has two forks head (size (1.3±0.2)mm × (1.0±0.1) mm) ;the size of 4 padsat the junction of bus bar and the fingers is (1.2±0.2)mm × (0.5±0.2)mm.
- Back(+):AlOX and SiNX dual layer and rear contact; the rear electrode is composed of 12 roots rear compound bus bar and 150-250 roots rear Al fingers,8 sections,1.4±0.3 mm silver anode.
210mm 9BB Bifacial Mono PERC Cell
- Front(-): Silicon dioxide + blue nitride composite anti-reflection film (PID free);Three-Segment design,9 roots bus bar and 120-180 roots fingers; The bus bar width is 0.08±0.03mm with three-Segment design, and the bus bar has two forks head (size (1.5±0.1)mm × (1.2±0.1) mm) ; the size of 4 padsat the junction of bus bar and the fingers is (1.5±0.15)mm × (1.0±0.15)mm.
- Back(+):AlOX and SiNX dual layer rear contact; the rear electrode is composed of 9 roots rear compound bus bar and 150-250 roots rear Al fingers,9 sections,1.8±0.2 mm silver anode.
High Yield|Easy installation, O&M|Safety|Easy and stable grid-connection
Product Features
- Support 1.1 times overload, effectively improve power generation
- Accurate string monitoring, pinpointing abnormal strings
- 2-way MPPT, effectively reduce module mismatch
- Adaptive control algorithm, adapt to harsh power grid
- Support remote monitoring, fault diagnosis and software upgrade
- Support GPRS, 4G, WIFI, RS485 and other communication methods
High Yield|Easy installation, O&M|Safety|Easy and stable grid-connection
Product Features
- Maximum efficiency 98.7%, European Efficiency 98.4%
- 10-way MPPT, adapt to complex installation scenarios
- Maximum branch current 20A, adaptable to double-sided power generation modules
- Support remote monitoring, fault diagnosis and software upgrade
- DC 1100V, AC 400V, improve system efficiency and increase power generation
- DC pull-arc detection supports string detection, nighttime SVG function IV scan, PLC communication
Anti-islanding | Over Current | DC Reverse Polarity | String Fault | AC/DC Surge | Insulation | Short Circuit
Safe and Long Life
- CATL battery cells for UL9540A;
- High Adaptability BMS Technology;
- Physical and electrical dual isolation;
Simple and Convenient
- Modular and scalable for AC&DC side;
- No debug, plug and play;
Multi Mode Online Switching
- Integrate UPS & PV Power supply;
- Economic Operation;
Wide Environmental Adaptability
- Charging and discharging operation (-10/+50℃);
- Outdoor Application IP65;
Product Certificates
Energy storage converters
IEC 62109/61000/61727/62116/50549, VDE4105/0124, UNE217001/217002, C10/11, G98/99, CEI, NC RfG, NTS V2.1
Battery PACK
CE, IEC 62040/63056, VDE2510-10, UN38.3, DGM, MSDS
Series
AE-HBD-S1
Models
AE-HBD-3KTL-S1,AE-HBD-5KTL-S1,AE-HBD-6KTL-S1
Series
AE-HBD-S3
Models
AE-HBD-8KTL-S3,AE-HBD-10KTL-S3,AE-HBD-12KTL-S3
Peak and valley reduction | demand response | dynamic capacity increase | emergency backup smart microgrid | virtual power plant (VPP)
89%
System Efficiency
99.05%
Highest PCS rate
- All-in-one all-in-one liquid cooling solution, C5 anti-corrosion grade, wide environmental adaptability;
- Standardized interface, support for multi-machine parallel connection, easy to expand capacity;
- Fast power response, support virtual power plant, grid-connected, off-grid and other modes’
- PACK-level SOX algorithm, six layers of security protection design, high security and reliability;
- Deep integration of cloud management & local intelligent control algorithm, intelligent economic dispatch
Certificates
Energy storage converters
IEC62477-1, GB/T34120-2017, GB/T34133-2017
Battery system
IEC62619, GB/T-36276 (Cell, Pack, Rack)
Models
AE-ESS-215L-100KTL-C3
Automatic set| Complete set at one time|Quality Aesthetics|Safe and reliable
- Automatic set: digital automatic set with our planning tool.
- Complete set at one time: full set delivery, save time.
- Quality Aesthetics: fit perfectly with AIKO full black modules.
- Safe and reliable: screw ETA certification; hook wall thickness up to 9.5 mm.

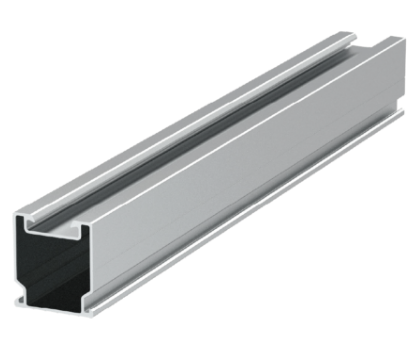

- Easier installation: standard guide rails are compatible with horizontal installation; guide rails can be flexibly extended.

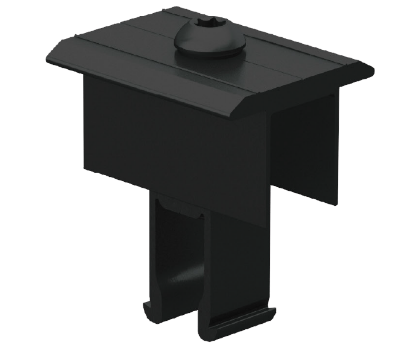

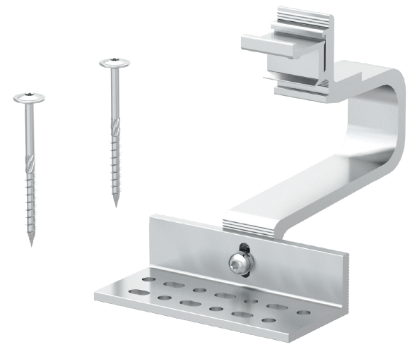

Key assembles
